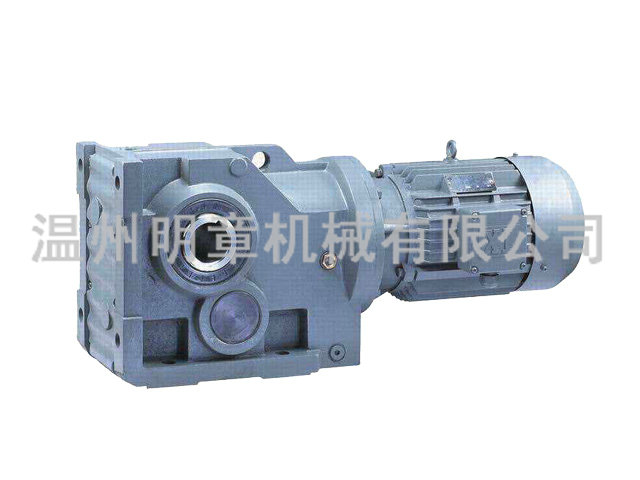

K系列减速机
2018/8/9
| 型号 | 安 装 尺 寸 | 轴 伸 尺 寸 | 外 形 尺 寸 | ||||||||||
| H0 | B0 A0 |
C0 a2 |
a3 q |
A1 d0 |
d | L | S | b t |
B H |
L1 h |
W h1 |
A C |
|
| K37 | 100 | 100 110 | 115 28 | 32 |
10 11 |
25k6 | 50 | M10 | 8 28 |
120 165 | 139 16 |
110 8.5 |
143? 150 |
| K47 | 112 | 120 130 | 130 35 | 37 71 |
15 11 |
30k6 | 60 | M10 | 8 33 |
145 186 | 166 18 |
135 7.2 |
162 170 |
| K57 | 132 | 130 130 |
150 30 |
45 80 |
18 13.5 |
35k6 | 70 | M12 | 10 38 |
157 217 |
173 21 |
153 13.1 |
172 190 |
| K67 | 140 | 140 120 | 160 30 | 45 90 |
21 13.5 | 40k6 | 80 | M16 | 12 43 |
170 228 | 179 24 |
171 20 |
170 203 |
| K77 | 180 | 165 150 | 200 40 | 55 112 | 23.5 18 | 50k6 | 100 | M16 | 14 53.5 |
200 288 | 202 27 |
206 31.3 | 208 263 |
| K87 | 212 | 180 180 | 233 55 | 70 132 | 30 22 |
60m6 | 120 | M20 | 18 64 |
230 340 | 257 32 |
240 25.9 | 260 305 |
| K97 | 265 | 240 240 | 295 75 | 75 160 | 31 26 |
70m6 | 140 | M20 | 20 74.5 |
290 414 | 277 36 |
291 32.3 | 294 372 |
| K107 | 315 | 270 280 | 360 95 | 95 200 | 42 33 |
90m6 | 170 | M24 | 25 95 |
340 508 | 341 40 |
347 31.3 | 338 448 |
| K127 | 375 | 330 350 | 420 115 | 110 225 | 43 39 |
110m6 | 210 | M24 | 28 116 |
400 592 | 390 45 |
418 57.2 | 440 526 |
| K157 | 450 | 420 380 | 500 140 | 130 280 | 37 39 |
120m6 | 210 | M24 | 32 127 |
500 705 | 426 50 |
457 77 |
480 634 |
